Residential swing gate automation

Ditec Obbi – SAFE AND FUNCTIONAL, FOR SWING GATES WITH DOORS UP 3 METERS, FOR MEDIUM DUTY

Elegant design
Gates for residential use often need to be powered with automation systems which not only guarantee long-term reliability, but also fully integrate with the aesthetics of the gate.
Ditec Obbi, with its refined and essential design, perfectly satisfies this requirement.

Versatile
The structure, which is very thin, enables exceptional integration and easy assembly, thanks both to the special attachment system, which can also be fastened without welding, and the multi-hole rear bracket, which makes it possible to find the ideal operating position by changing the combination of fastening holes.

Simple
In the event of a power failure, the automation can be manually operated by using the key operated release system 02 or automatically operated if a control panel with battery has been installed.

Technical specifications:

  • Power supply: 230 V AC
  • Motor: 24 V DC
  • Input: 3 A
  • Control panel: E2H
  • Protection rating: IP 54
  • Opening speed: 25 s (90°)
  • Gate leaf weight:
    maximum 250 kg  1,5 m maximum opening
    maximum 150 kg  3 m maximum opening

Kit contents:

  • 2 OBBI motor
  • 1 E2H control panel
  • 1 GOL 4 channel remote controls
  • 1 pair XEL 2 photocell

Accessories:

  • E2H control panel
  • VIVA H control panel
  • BAT K3 battery kit

Downloads:

Ditec PWR

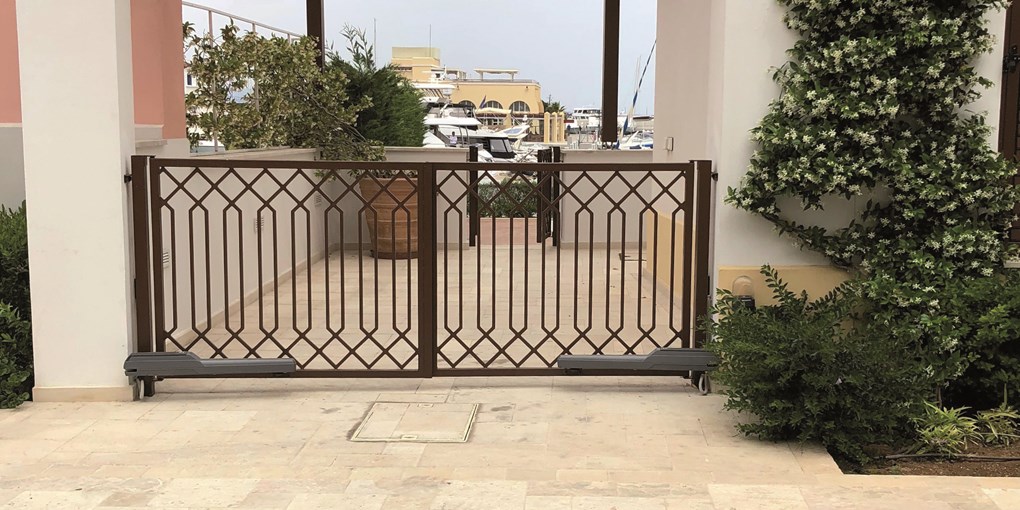

Ditec PWR is the new range of electromechanical actuators for swing gates in residential, condominium and industrial applications. They are designed and developed to ensure quality and strength, while making installation and maintenance easy.

A complete series made up of 24 Vdc motors and 230 Vac motor: a 24 Vdc motor for wings up to 2.5 m (Ditec PWR 25), a 24 Vdc motor for wings up to 3.5 m (Ditec PWR 35), three 24 Vdc motors for wings up to 5 m (Ditec PWR 50 series) and one 230 Vac motor for wings up to 5 m

Distinctive features:

Ditec PWR 25 – For wings up to 2.5 m

  • 24 V DC motor
  • IRREVERSIBLE with limit stops up to 150.000 cycles
  • simply loosen a single screw to remove the plastic cover and access the electrical wire terminals
  • key-operated manual release
  • actuator consisting of two robust aluminium die castings which guarantee optimum protection against shearing forces and torsion

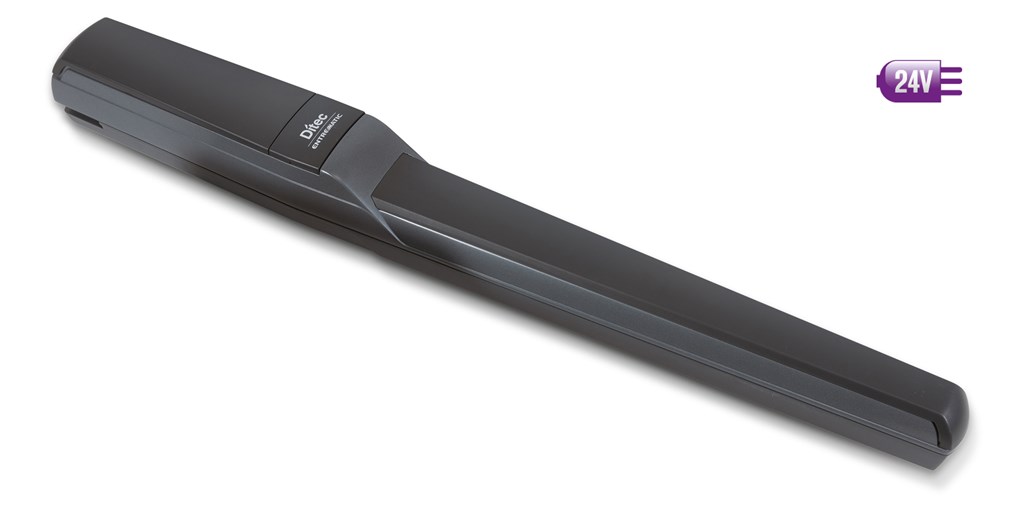

Ditec PWR 35 – For wings up to 3.5 m

  • 24 V DC motor
  • IRREVERSIBLE with limit stops up to 300.000 cycles
  • simply loosen a single screw to remove the plastic cover and access the electrical wire terminals
  • key-operated manual release
  • actuator consisting of two robust aluminium die castings which guarantee optimum protection against shearing forces and torsion

Download:

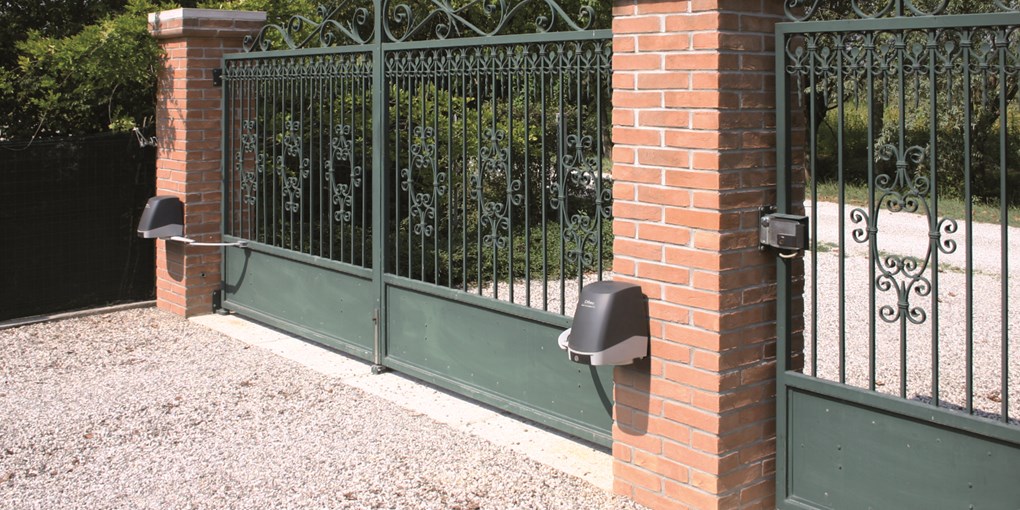

FACIL – SIMPLE AND VERSATILE, WITH ARTICULATED ARM FOR WING UP TO 2.3 m OR WEIGHING UP TO 300 KG

Suitable for medium and large sized vertical mountings, even out-of-plumb.

The 24 volt DC motor and virtual encoder permit constant adjustment of the force of impact and immediate detection of obstacles. The ABS cover ensures good weather resistance and, thanks to the highly aesthetic finish, adapts to all sorts of installation contexts. The manual, key-operated release system is in an easily accessible position at the front. It is designed to house a remote release device and gear motor release signal micro-switch. Version with built-in control panel and optional back-up batteries.

No problem in case of power failure

  • The key operated, easily accessible release door is built into the front of the cast aluminium casing
  • The Deb 04 device, which is easily operated with a cord, allows the automation to be remotely controlled without opening the door

Carefully designed with safety in mind

  • The shape of the articulated arm and its connection to the casing have been designed to avoid any shearing problems
  • Ditec Facil is fitted with built in and adjustable open-close mechanical stops
  • A limit switch unit can be installed to supply visual indicators or to stop the wing

Ready and simple to install

Ditec Facil features a built-in electronic panel which can easily be removed, leading to obvious advantages during the installation stage as well as when performing any maintenance on the automation.

After removing the guard, the see-through control panel enclosure can be taken out to reveal the controls.

Download: Ditec automation for gates

Technical specifications:

  • Power supply: 230 V AC
  • Motor: 24 V DC
  • Input: 6 A
  • Control panel: E2H
  • Protection rating: IP 54
  • Opening speed: 12-32 s (90°)
  • Gate leaf weight:
    maximum 200 kg  2,3 m maximum opening
    maximum 300 kg  1 m maximum opening

Kit contents:

  • 1 FACIL 3H motor
  • 1 FACIL 3BH motor, built-in E2H control panel
  • 1 GOL 4 channel remote controls
  • 1 pair XEL 2 photocell

Accessories:

  • E2H control panel
  • BOX FC1 magnetic limit switch set

Downloads:

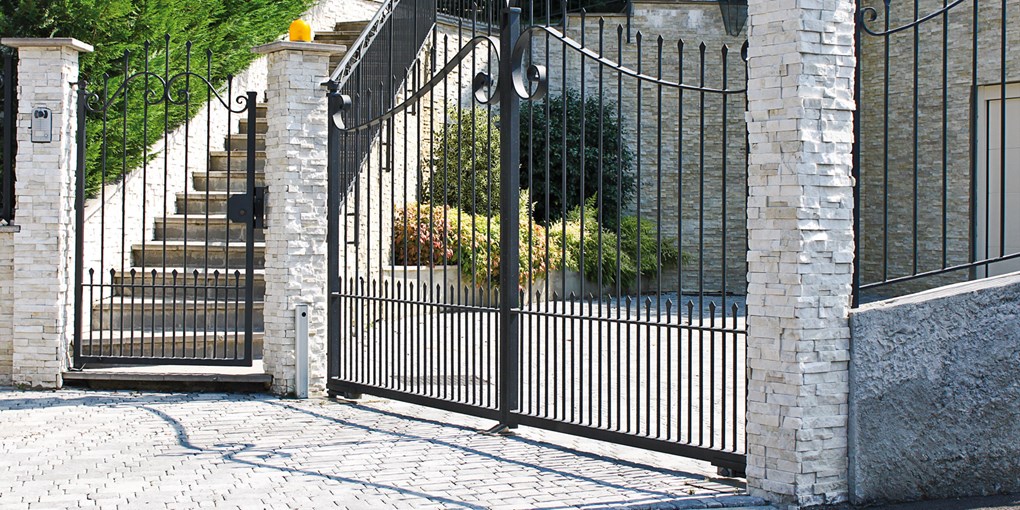

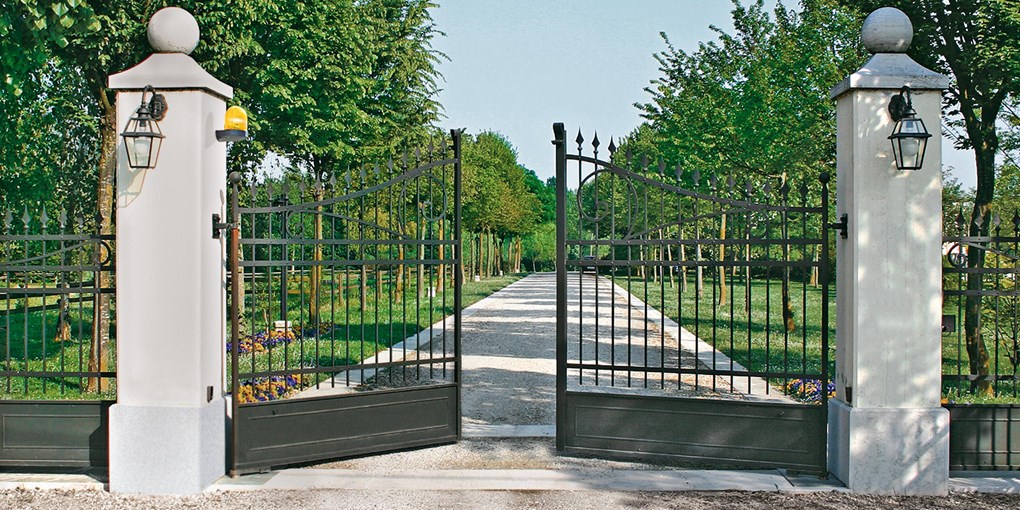

CUBIC – THE INVISIBLE AUTOMATION, FOR WING UP TO 3.5 m WIDE OR WEIGHING UP TO 600 KG

Concealed from sight, it’s the ideal automation system for gates where aesthetic appeal and style are important factors.

The range includes 230 V AC and 24 V DC versions. The 24 V DC models allow partial opening, speed regulation, soft start and soft stop. A fast model is available which opens in 6 seconds (to 90°) for pedestrian access up to 1.5 m. Mechanical limit switches supplied as standard, magnetic as optional. Various types of lever systems for opening up to 180° are available.

Concealed, sturdy and versatile

Practical and simple to operate, the automation consists of a stainless steel or electrically galvanised steel foundation casing fitted below the ground, where the geared motor and all mechanical linkages which operate the gate leaves are housed.

This highly versatile solution which can be customised to individual requirements:

  • allows the gate to be opened at a very wide angle, up to 180°;
  • combined with Ditec electrical control panels, the automation allows the motor to successfully overcome any initial friction caused by bad weather conditions such as ice;
  • can also be used in applications requiring fast access.

Distinctive features

  • the gear motors are housed in a sturdy stainless steel or electrically galvanised steel foundation casing to increase resistance to weathering; the automation is fixed by means of stainless steel screws pre-built in the foundation casing
  • in the 110° angle version, rotation is done by a lever system, whilst in the 180° angle version rotation is done by a chain
  • CE mark
  • aesthetically pleasing release system with key and lever which may be operated from both sides
  • works even at low temperatures
  • motor protected by an internal temperature probe
  • supplied with all security, control and monitoring accessories
  • wing support system on hardened steel ball.

Technical specifications:

  • Power supply: 230 V AC
  • Motor: 230 V AC
  • Power input: 1,5A
  • Control panel: E2
  • Protection rating: IP 67
  • Opening speed: 18 s (90°)
  • Gate leaf weight:
    maximum 600 kg  2 m maximum opening
    maximum 250 kg  3,5 m maximum opening

Kit contents:

  • 2 CUBIC 6 motor
  • 2 CUBIC 6C cover
  • 2 CUBIC 6L carriage
  • 1 E2 control panel
  • 1 GOL 4 channel remote controls

Accessories:

  • E2 control panel

Downloads:
