Ditec sprint is SIMPLY, ALL THE COMFORT THAT YOU HAVE EVER WANTED
Thanks to its neutral and elegant appearance, the Ditec Sprint automation system is the ideal solution for both residential and high-class environments, such as professional studios, shops, offices and hotels.
Available in light grey, black or elegant satin-finished aluminium, it is suitable for internal swing doors up to 110 kg and 1.2 metres wide.
Beautiful
The Ditec Spring automation, thanks to its neutral and elegant appearance is the ideal solution for both residential and high-class environments, such as professional studios, shops, offices and hotels.
Available in light grey, black or elegant satin-finished alu-minium, it is suitable for internal swing doors up to 110 kg.
Simple to assemble and install thanks to the lower weight fastening plate and the adjustments which can be set on the electronic card.
Simple configuration according to user preferences and requirements, thanks to the PUSH & GO and LOW ENERGY modes, for total ease of use.
Modular
It is possible to select the 24 V DC or 230 V AC power supply operator with the desired cover, the most suitable arm and add batteries, if required: the installers just have to select what they really need and if they wish they can integrate the selectors, the sensors and the other Ditec accessories for a more complete installation.
DAB 105 is a SMART AUTOMATION TO MAKE YOUR LIFE EASIER
Ditec DAB105 is an electromechanical servo-assisted automation system for swing doors with spring, with 24 V DC gear motor and encoder-managed kinematics, for safe and reliable management of door movement in every situation.
The powerful gear motor easily moves wings up to 200 kg of weight or over 1.2 m of width.
Ditec DAB105 ensures access without barriers and ease of operation.
Performance
- High performance with up to 200 kg door weight and mechanical servo-assisted operator, encoder controlled
- Reliable operator: strong components and real time self monitoring of the operator status
- Safety guaranteed by technological features, opening control system, and motion-detection safety signal
- Very low noise level
- Many additional advanced features make Ditec DAB105 a best in class product.
Convenient & flexible
- Easy installation, set-up and maintenance in the available PUSH and PULL versions
- Easy program selection to expand functions (with a card) if necessary
- One operator matches specific installation requirements (double leaf doors, installations in presence of wind, key controlled access)
- Easy to order: 1 item alone includes operator + cover (just add arm)
- Power assisted: the entire opening operation is carried out by low, motor assisted power making it an ideal solution for users with or without disabilities.
Safe & reliable
- Several operating modes to match different demands (PUSH&GO, power assist, key impulse)
- LOW ENERGY mode and battery kit available
- Convenient operator control via sensors, switch, program and key selectors
- Ditec DAB105 has obtained SP SITAC and Exova Warrington Test Report certification for use on fire doors. For more details, contact our Technical Sales Office.
DITEC DAB205 OFFERS GREAT POWER AND MAXIMUM CONTROL FOR PERFORMANCE THAT IS ALWAYS RELIABLE AND SAFE
Ditec DAB205 is the top of the range solution for swing door applications: its slim, elegant design make it perfect for any setting.
Ditec DAB205 has an extremely powerful gear reducer which performs opening and contributes to closing helped by a spring; it’s the highest performer in its market segment, it can automate swing doors up to 400 kg in weight and 1.6 m wide.
Performance
- The push-arm version can move doors up to 400 kg in weight; the servo-assisted motor with spring guarantees a reliable closing movement while the encoder offers perfect control of the kinematic movement
- Strong steel mechanical components and the long-lasting Dunker motor guarantee exceptional operator reliability. Ditec DAB205 has been tested up to 1 M cycles
- Perfect dynamic control also for bi-parting doors, it offers many possibilities for managing movement (overlap, contact, no contact, double exit).
Easy to use
- Very easy to configure: a single operator suitable for all applications and 2 different arms, push and pull, also for fire-door applications
- Many mechanical accessories, like shaft and arm extensions, to adapt the operator perfectly to the wall and to the door position
- Configuration diagrams are available (safety and security) to add functions and other operating modes if necessary
- Large choice of operating modes, such as PUSH&GO and power assist, to meet the various different needs of the market.
Safety
- Ditec DAB205 complies all European standards and directives, including standard EN 16005
- Safety can also be guaranteed by the use of monitored safety sensors
- In case of power failure a reliable battery kit is available which guarantees the continuous operation of the operator over time (optional)
- It’s safe thanks to an external LED which shows the status of the door, and a specific LED for fire alarm status (both optional): a clear warning also for the end user in all cases of possible failure
- Ditec DAB205 has obtained SP SITAC certification for use on fire doors.

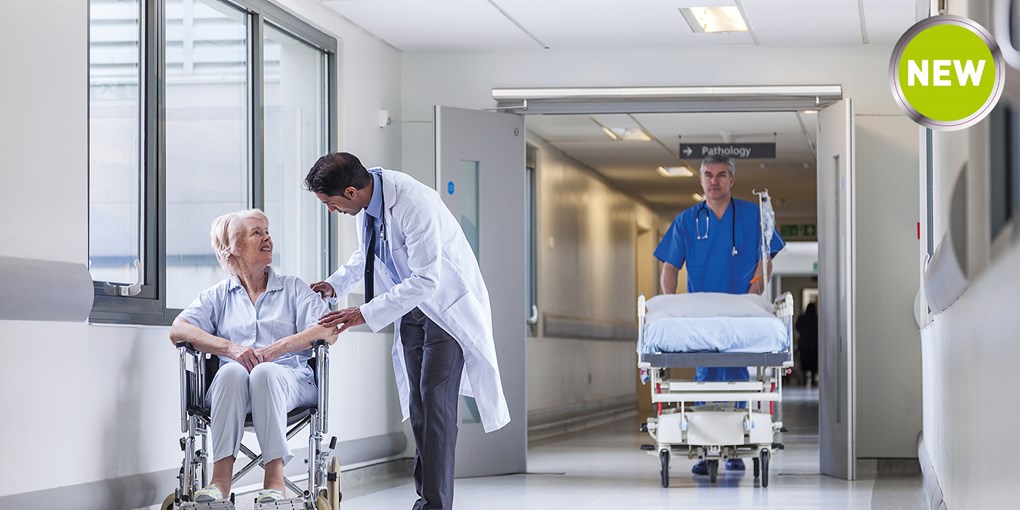

The Ditec DAB305 electromechanical automatic swing door operator is capable of moving any type of interior or exterior door simplyand quietly. The extensive choice of solutions offered makes the DAB305 the ideal swing door operator for any application.
A MODERN, FUNCTIONAL DESIGN
With total height of just 70 mm, the DAB305 automatic operator has sleek, modern looks that are perfectly suited to the design needs of contemporary buildings. The design of the Ditec DAB305 has also been conceived to guarantee fully comprehensive installation: its compact size is particularly suitable for slimmer profiles and smaller areas
BARRIER-FREE ENTRANCE
The automatic functioning of Ditec operators guarantees streamlined access, as each door can be easily opened. Ditec door operating units include a LOW ENERGY mode, to meet the stringent safety requirements of the public sector. The Ditec DAB305 can be activated from a pushbutton, a radar motion sensor or with PUSH&GO and Servo-Assistance functions.
SAFETY ABOVE ALL
Modern buildings demand flexible solutions capable of catering for any need, especially with regards to safety. Ditec offers a range ofsmart intelligent systems that meet these needs: the Ditec DAB305 is the new-generation operating unit for swing doors, with particular attention paid to escape routes and fire and smoke prevention measures.
